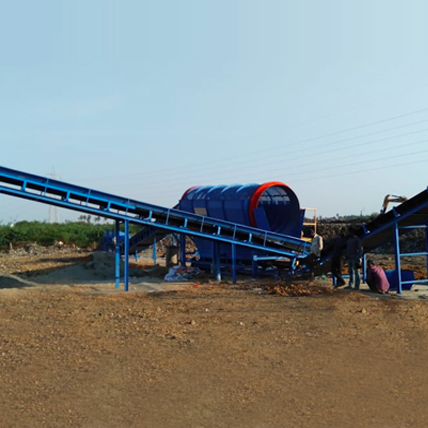

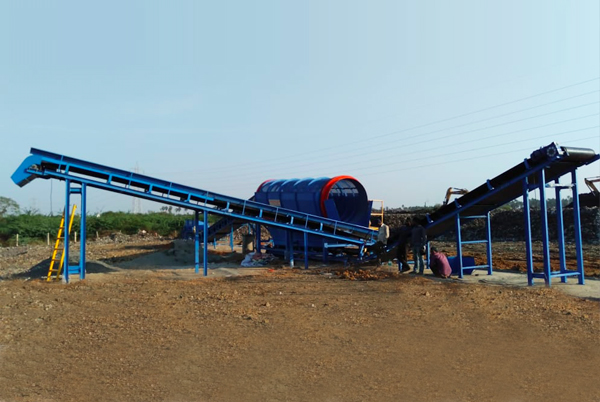

Trommel Screen

Known for its excellent waste material screening capabilities, the trommel screens are extensively demanded by several municipalities and others.

A Rotary trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries

This trommel screen is developed with using premium class raw material in accordance with set quality norms

This trommel screen is developed with using premium class raw material in accordance with set quality norms

Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum

This trommel screen is provided in various specifications at very affordable rates to the customers.

Features and Benefits

  Steady and smooth operation.

  Low noise and low energy consumption.

  Hydraulic Foldable conveyor also MBF (Moving Belt feeder) is available

  Available In A Variety Of Diameters And Lengths

  Simple structure with easy maintenance.

  Equipment is fully sealed with cover in order to minimize the suspension of fine materials in the air during the operation. Low dust pollution.

  High screening efficiency due to installation of comb shape screen structure.

 Cylindrical shape of the screen provides larger surface area for the materials to in contact with. Able to handle large capacity of materials with high efficiency.

  Long life span

Product Specifications

Capacity 10TPD to 150TPD
Motor Power 10HP to 60HP
Conveyor Attachment Feeding conveyor, process Conveyor, vibrating conveyor, MBF
Conveyor Size: Up to 1.5 meter
RPM 10-15, VFD Controlled
Screen Diameter Up to 2200mm
Screen Length 3000 to 15000mm
Feeding Size 0-700mm
Discharge Size: 0-120mm
Electrical Panel VFD Controlled interlocked Panel
